Product ID : 32800218975
Price : $495.00
Discount Price : $445.50

VISIT WEBSITE NOW

Item specifics
  • Digital Channels:
    4
  • Display Size:
    3.0 – 4.9 Inches
  • Max Waveform Capture Rate:
    30,000wfm/s
  • DIY Supplies:
    Electrical
  • Record Length:
    See description
  • Brand Name:
    Hantek
  • Model Number:
    DSO3254A
  • IS Battery Demountable:
    No
  • Display resolution:
    See description
  • Real Time Sampling Rate:
    See description
  • Band Width:
    See description
  • Band Width:100-349MHz:
    L,C,R,Z
  • Record Length:as describe:
    100-240V~50/60Hz 0.35A
  • Digital Channels:4:
    0.2%
  • Max Waveform Capture Rate:30,000wfm/s:
    100Hz,120Hz,1kHz,10kHz,100kHz
  • Real Time Sampling Rate:1GSa/S:
    100Ω
  • Type:
    Function generator price
  • Bandwidth:250MHz:
    0.6Vrms
  • Warranty:
    1 year
  • Stock:
    Yes
Product Description

888888888888

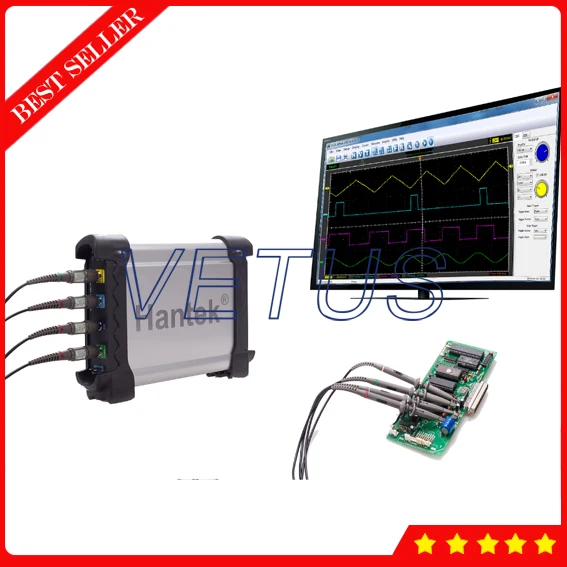

DSO3254A Digital Function generator price with automotive signal generator Oscilloscope USB PC Based Automotive Oscilosco

1
Description
 128M memory depth;
· 4 channel and EXT trigger;
· 250MHz bandwidth;
· 1GSa/s real-time sampling rate;
· 8–36V Wide range of input voltage,suitable for vehicle power test;
· More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application;
·  Excellent industrial design, similar interface with bench oscilloscope, easy to use;
· Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win7, Win8;
· Supply DEMO code(VC, VB, LABIEW) and technical support.



2
Specification

Model DSO3254A
Vertical System
Analog Channels 4
Bandwidth 250MHz(-3dB)
Rise Time 1.4ns
Input Impedance Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity 10mV/div to 5V/div
Input Coupling AC/DC/GND
Vertical Resolution 8 bits
Memory Depth 128M/CH
Maximum Input 400V (DC+AC Peak)
Horizontal System
Real-Time Sampling Rate 1GSa/s
Time BaseRange 5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision ±50ppm
Trigger System
Source CH1, CH2, CH3, CH4, EXT
Mode Edge,Pulse,Viedo,Alternative
X-Y MODE
X-Axis Input CH1
Y-Axis Input CH2
Phrase Shift Max.3 degree
Cursors and Measurement
Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement Frequency,Period, Rise Time, Fall Time, PositiveWidth, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
AUTO SET Yes
Voltage Range 10mV to 5V/div @ x 1 probe;
100mV to 50V/div @ x 10 probe;
1V to 500V/div @ x 100 probe;
10V to 5000V/div @ x 1000 probe;
100V to 50000V/div @ x 10000 probe;
200mV to 100V/div @ 20:1
Current  Range CC65(20A),CC65(60A),CC650,CC1100
FFT Rectangular, Hanning,Hamming, Blackman Window
Math Adition, subtraction, multiplication, division
Interface USB  2.0
Power Source 8-36V wide range of input voltage, suitable for vehicle power test.
Volume 255 x 190 x 45 (mm)
Weight 1kg

3
Product picture

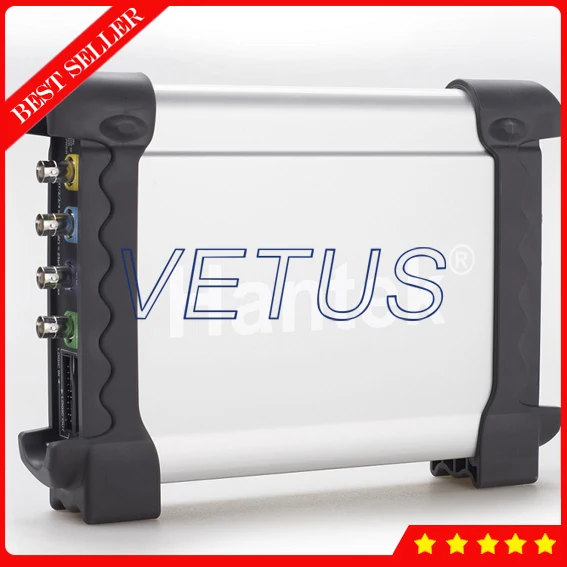

The positive

34
The side

75

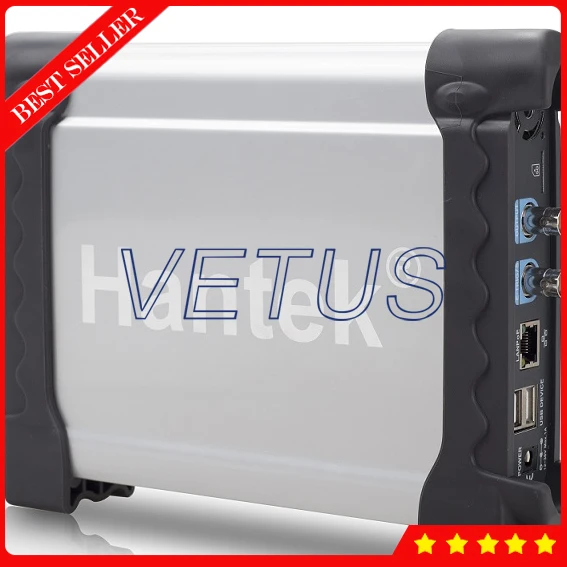

The back
162
5jpg

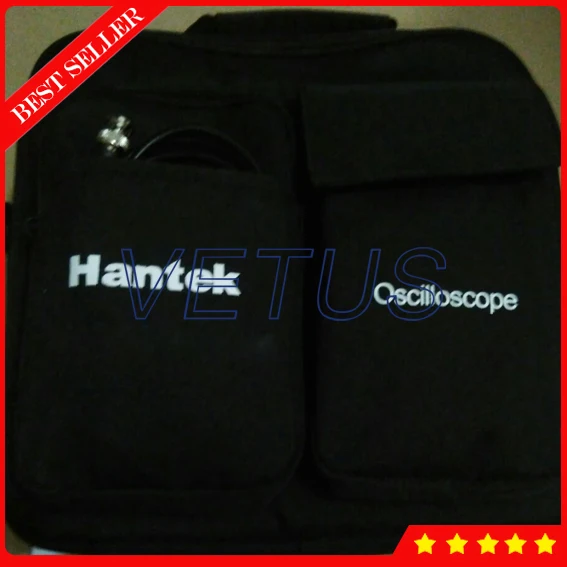

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    5.0kg (11.02lb.)
  • Package Size:
    27cm x 26cm x 13cm (10.63in x 10.24in x 5.12in)
