Product ID : 32630561361
Price : $43.50
Discount Price : $22.62

VISIT WEBSITE NOW

Item specifics
  • Brand Name:
    ZEAST
  • Display Size:
    3.0 – 4.9 Inches
  • Band Width:
    Less than 60MHz
  • Model Number:
    Digital Oscilloscope
  • Digital Channels:
    1
  • DIY Supplies:
    Electrical
  • Real Time Sampling Rate:
    1Msps
Product Description
For more related products, please click

aeProduct.getSubject()

Description:

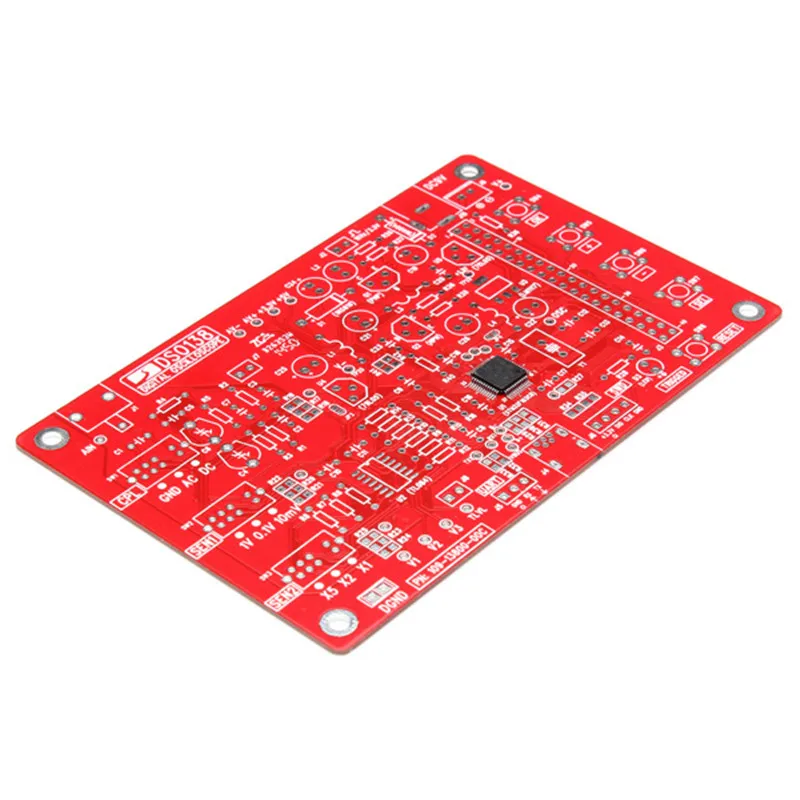

PCB size: 117 x 76mm

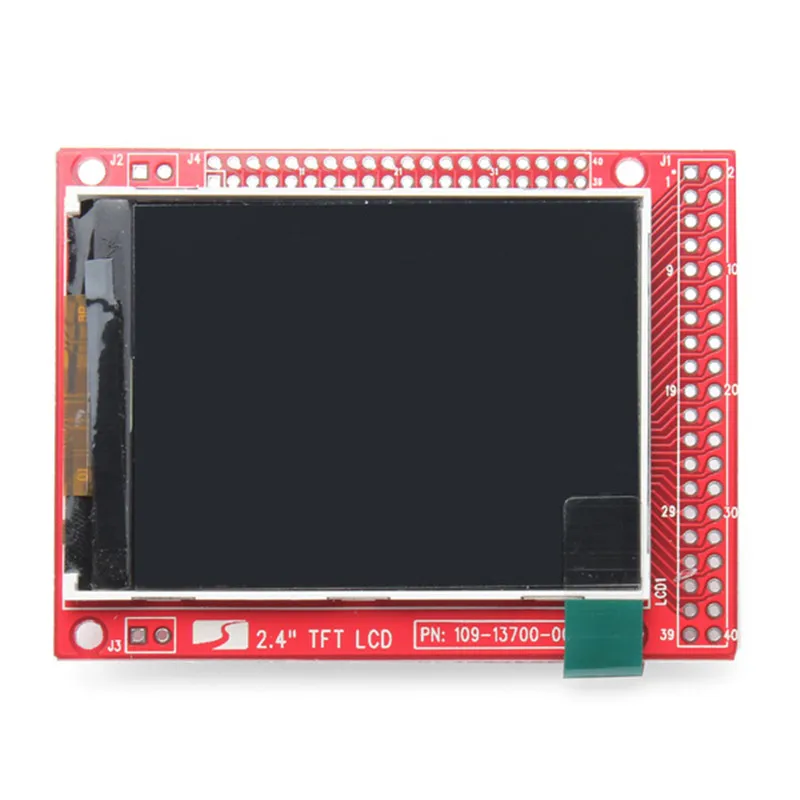

Screen size: 52 x 40mm
Supply voltage: for DC 9V

Characteristics of indicators:
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 – 200KHz
Vertical Sensitivity: 10mV / Div – 5V / Div (1-2-5 progressive manner)
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling modes:for DC / AC / GND
The horizontal time base range: 10μs / Div – 50s / Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falling edg-e trigger
Adjustable trigger level position, and with instructions
Observable previous trigger waveform (negative delay)
Can freeze at any time waveform display (HOLD function)
Comes 1Hz /3.3V square wave test signal source

Note: This is a DIY kit, need to have some basic electronic activity and ability, because of different levels of ability and technical, we can not guarantee that everyone can DIY success, but we are committed to do our best of after-sales service.
Here is the EN manual, please careful read it before you DIY this kit. (Click here to open)

Package included:

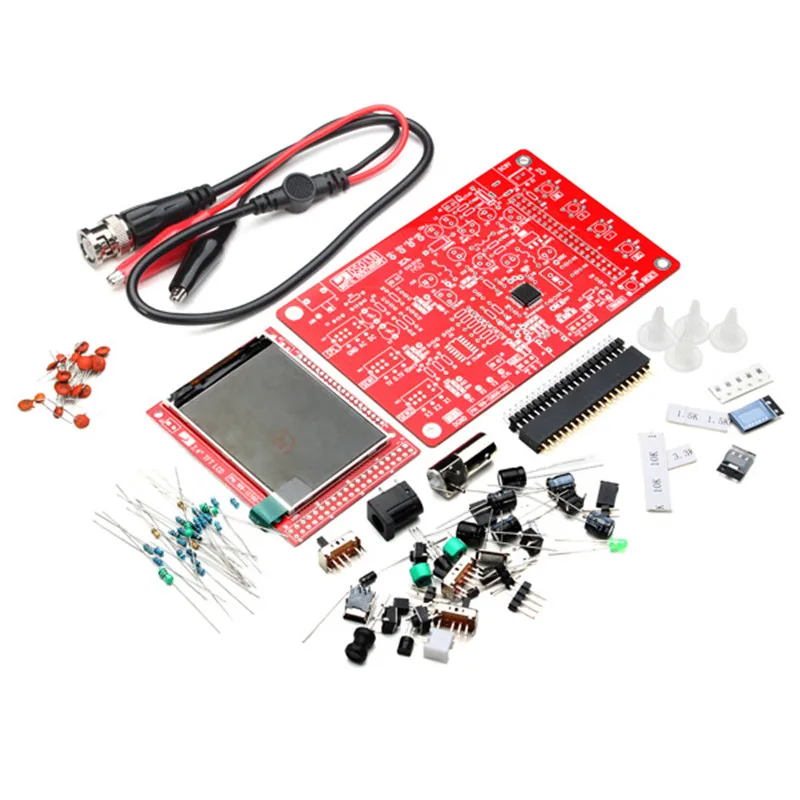

1 x DIY Digital Oscilloscope Kit

aeProduct.getSubject()

aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()


aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()



Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    0.135kg (0.30lb.)
  • Package Size:
    14cm x 10cm x 5cm (5.51in x 3.94in x 1.97in)
