New Released!!! ICOM P for B.MW Diagnostic and programming auto scanner, support new car till 2018, same function as icom a2+b+c, icom next, support wireless connection, if you don't how to set wifi, please contact seller after receiving parcel, thanks!
New ICOM P with wifi :
New ICOM P for B-M-W
a versatile diagnostic vehicle, module matching, vehicle module reset and other powerful diagnostic connector, is in the treasure
Diagnostic connector used in the manufacturing plant line. Including the market of ICOM A1 / ICOM A2 / ICOM NEXT … so a series of equipment
Function and not open to the public, relative to the stability of the vehicle diagnosis and vehicle programming ICOM P is particularly prominent, independent of vehicle type and communication
Interface restrictions. Each model in the sale of cars are after ICOM P vehicle matching diagnosis offline sales.
ICOM P It is an information protocol calculation and conversion device between the vehicle OBD interface and the PC software, with the ability to connect to the workshop LAN
Diagnostic connector for wireless data exchange. It acts as a protocol converter, through the powerful core processor computing detector and vehicle controller
Data is exchanged between, and the signal is processed for the instrument interface. The ICOM P is powered by the OBD interface of the vehicle (OBD terminal 1/16/4/5).
ICOM P minimum operating voltage of 8V. Only when the voltage is not less than the minimum limit, to ensure stable function.

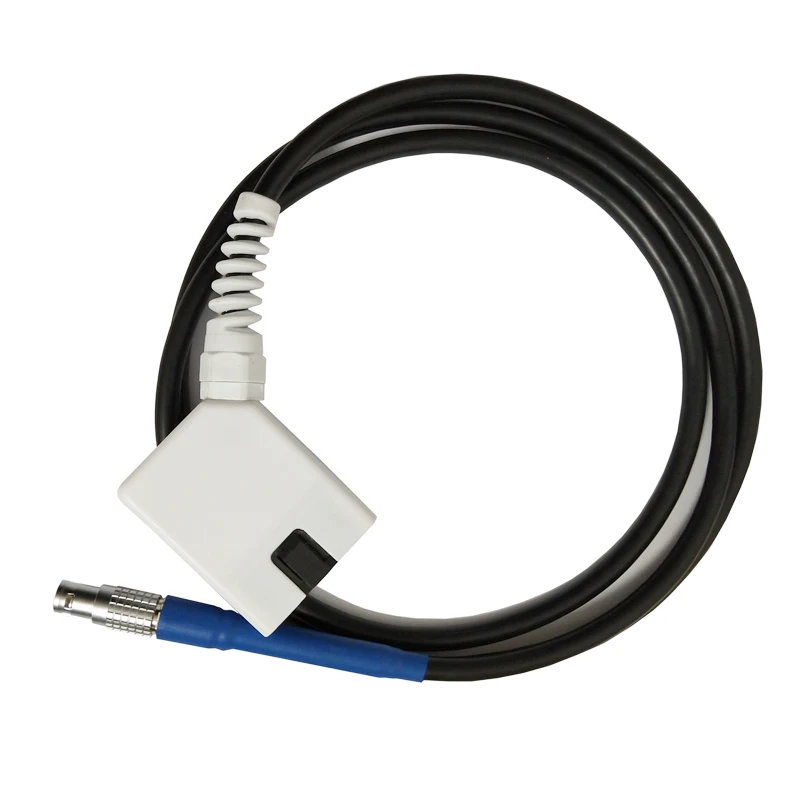

OBOM main line connector of ICOM P device connects with 11P + 5P aviation connector, interface with automatic locking function to prevent accidental communication process
Data loss caused by disconnection.

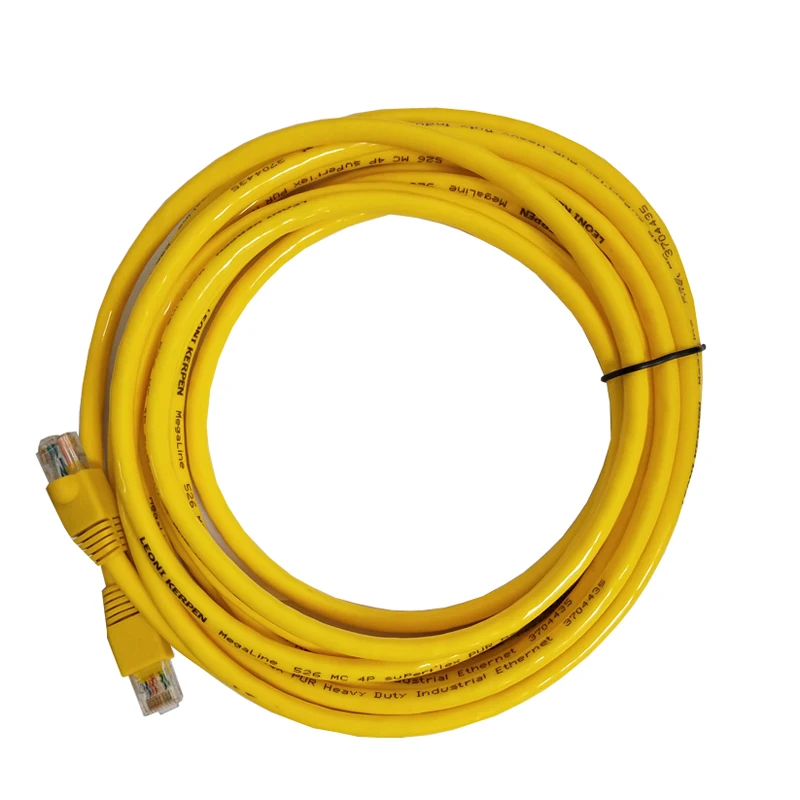

The communication interface connects the PC software through the network cable and the cable is 1000MB / S cable.
Set the router account password, wireless maintenance workshop by wireless connection within the network data transmission.
Used to connect ICOM B, data exchange, ICOM P and other extensions to be upgraded offline.
Name Color Status
SYSTEM Green flashing The device is started
SYSTEM Green Always ready
SYSTEM Solid red The device is faulty
SYSTEM Off Abnormal device power supply
LAN Green Solid Ethernet is connected
LAN flashing data exchange
LAN is off Ethernet is not connected
WLAN flashing data exchange
WLAN Off No WIFI communication
COMM blinks K-Line, D-CAN communication
Working environment temperature and heat dissipation
ICOM P custom-designed equipment for the production line, with a long time continuous operation does not crash the performance and advantages of the external ambient temperature range –
50 ° / 45 ° Over the sub-ambient temperature can cause ICOM P device failure.
ICOM P Compatible with ICOM A1 / ICOM A2 / ICOM NEXT Connector Capabilities, Compatible with ICOM B, ICOM C, ICOM D, ICOM E, ICOM
NEXT B, ICOM NEXT C, ICOM NEXT D perfect match compatible with the use of synchronization.
ICOM P Software Feature:
Software Version : V2018-07

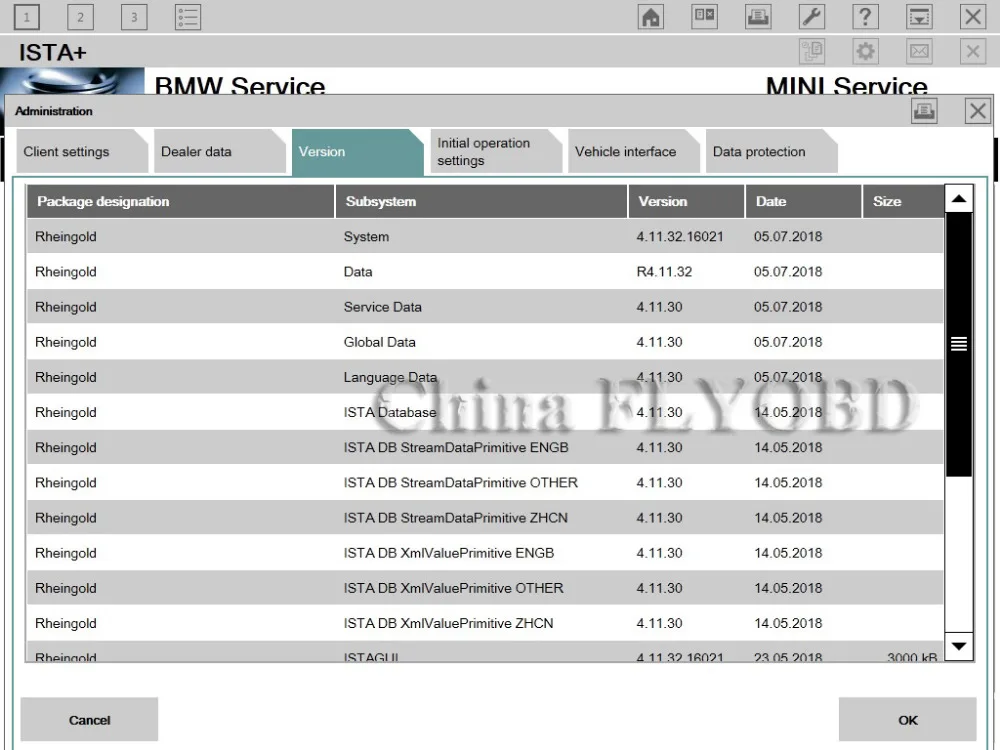

ISTA – D: 4.11.30 , with SDP data 4.11.30,can program F/G/I/K chassis for car (through the ICOM, not other cable )

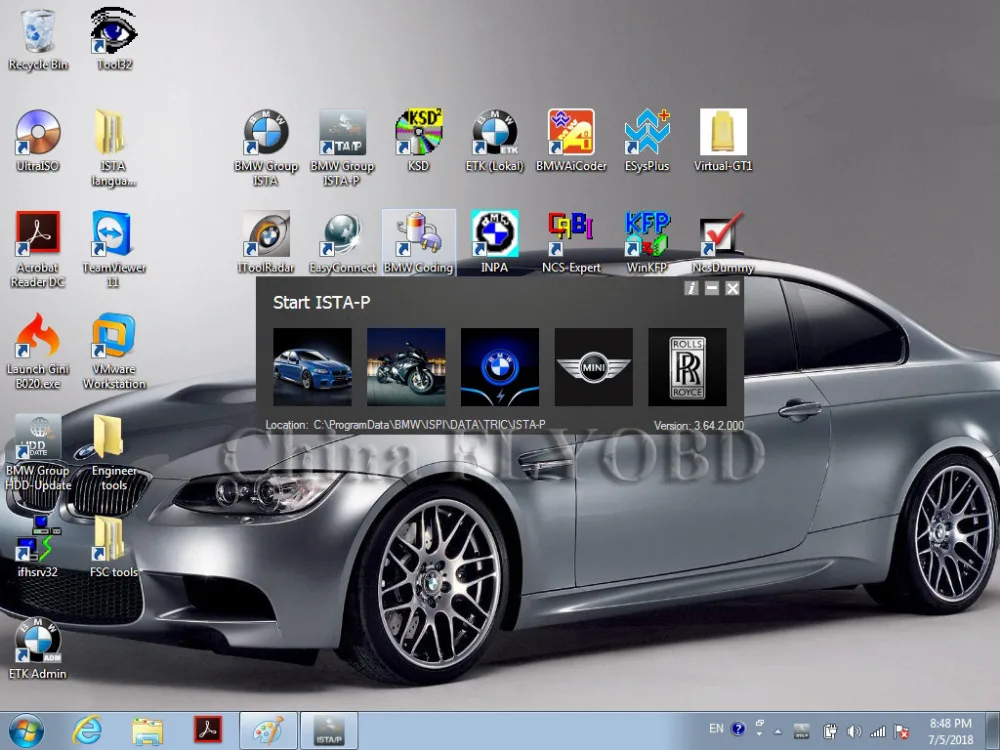

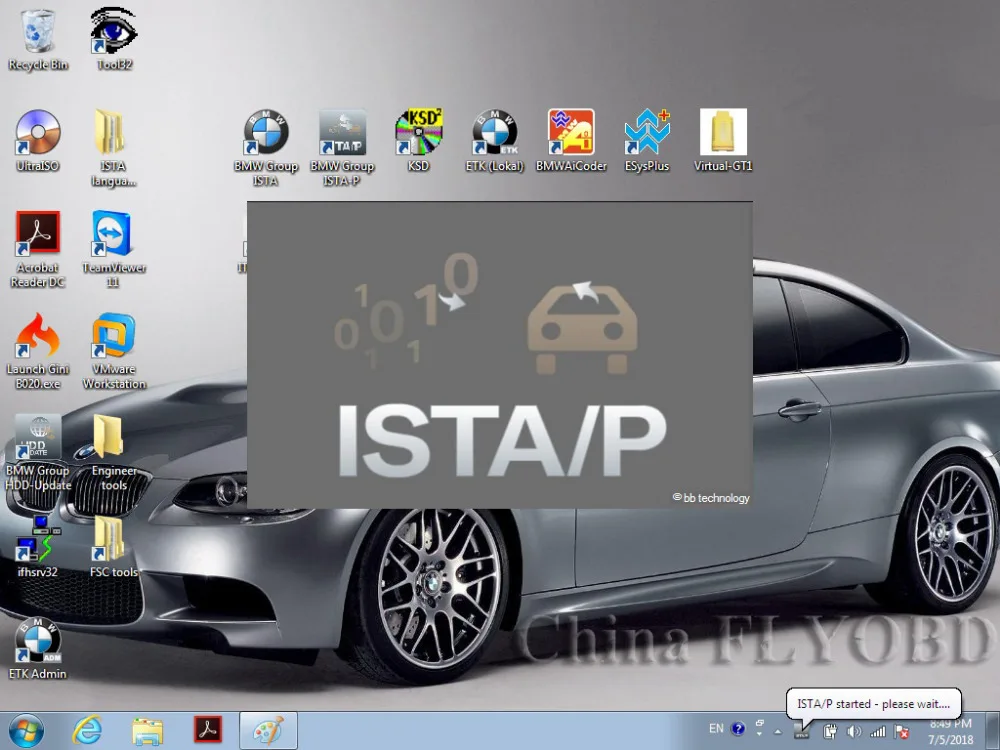

ISTA – P: 126.96.36.1990,
INPA 5.00, WINKFP 5.2.3, NCS 3.5.1
E-SYS 3.27.1 data V61
with DR.GINI B020(Chinese)
FSC operator code
Extra program DISV57 and DISV44 for old cars diagnostic and programming software
ICOM NEXT with wifi :
1. ICOM NEXT A Latest Generation Diagnostic Head For BMW, for MINI, for Rolls-Royce for BMW-Model.
2. Can Replace for BMW ICOM A2, including all function of ICOM A2.
3. For ICOM NEXT not support WIFI.
4. ICOM NEXT can works together with ICOM Software we provided.
5. ICOM NEXT can connect internet and Printer.
Improved Functionality and Performance:
1. Gbit workshop LAN, backwards compatible
2. Preparation for Gbit LAN on vehicle OBD(cars do not yet supportthis and interface not
yet defined,ICOM Next hardware adaptation will be necessary for future Gbit car
interface,will cause adaptation costs)
3. Faster start-up times and high throughput
4. Through high-performance,low-power ARM SoC
5. Improved handling
6. More flexible OBD cable
7. Lighted button for logs etc
ICOM NEXT A+B+C Diadnostic Head Overview?
Functionally compatible to ICOM A2
Mechanical design similar ICOM A2
Backwards compatible to car adapters (ICOM B, C) and motorcycle adapters (ICOM D, E)
ICOM NEXT ABC Specifications:
Zeroization of data on tamper detection
Secure supply chain assurance
Key storage using physically un-clonable function
CRI Pass-Through DPA Patent Portfolio
Advanced cryptographic Services
