Product Description

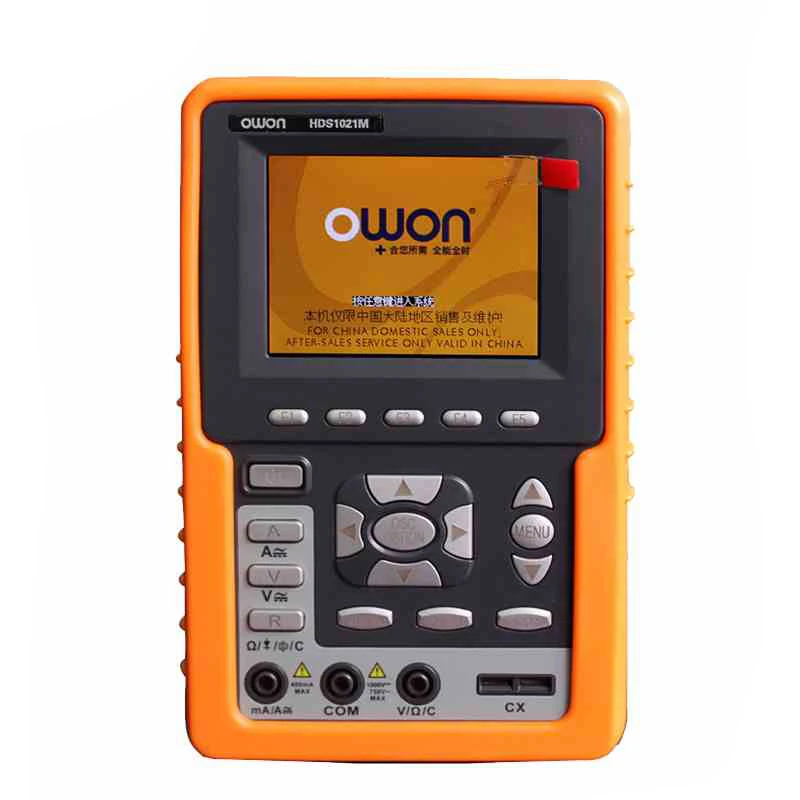

Owon HDS1021M Series HDS Handheld Digital Storage Oscilloscope and Digital Multimeter, 20MHz, Single Channel, 100MS/s Sample Rate




Product features
Handheld unit combines a 20 MHz, single-channel digital oscilloscope for viewing electrical signals with a digital multimeter for measuring voltage, current, resistance, and capacitance
Oscilloscope's maximum real-time sample rate is 100 MS/s and record length is 6,000 points for acquiring detailed waveforms
Manual- and auto-ranging multimeter provides options for user control
3.5" color TFT-LCD for viewing waveforms and measurements
Meets EN 61010-1:2001 safety standard, and is rated for CAT II installations to 400V
Product description
The Owon HDS1021M is a handheld electrical test device that combines a 20 MHz, single-channel, handheld digital oscilloscope for viewing electrical signals with a manual- and auto-ranging digital multimeter for measuring AC and DC voltage to 400V, AC and DC current to 20 amp, resistance to 40 MΩ, and capacitance to 100 μF. The oscilloscope has maximum real-time sample rate of 100MS/s and a record length of 6,000 points for acquiring detailed waveforms. Its 18 automatic measurements such as period, frequency, and peak-to-peak enable an in-depth analysis of waveforms. Up to four waveforms can be stored in the internal memory. The multimeter has two ranging modes: manual, which allows the user to select the operating range, and auto, which automatically selects the appropriate operating range. The delta relative function allows a measurement to be set as a reference value and displays subsequent measurements as a positive or negative deviation from that value, and the data-hold function freezes a reading on the display to aid documentation. A continuity buzzer confirms that the circuit conducts electricity, and a diode check detects whether a circuit's diodes are working properly. Additional specifications include a rise time of 17.5 ns and various triggering features. The unit has a 3.5" color TFT (thin film transistor) LCD with a resolution of 320 x 240 pixels for viewing waveforms and measurements. An oscilloscope is used for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education, among others. A multimeter is an electrical testing tool for measuring multiple properties of an electrical circuit to verify proper operation or diagnose problems.

The unit has a USB port for connecting to a PC and includes Microsoft Windows compatible software for transmitting data and remote operation. It meets EN (European Standard) 61010-1:2001 safety standard, and is rated for CAT II installations to 400V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory. It has European Conformity (CE) marking. It comes with an oscilloscope voltage probe; a set of test leads; an extension module for large current measurement; an extension module for small capacitance measurement; an output terminal for testing of 1 kHz/5V square-wave signal; probe adjustment tools; a USB interface cable; CD-ROM PC software; a rechargeable lithium ion battery; a battery charger/AC adapter for 100 to 240V, 50/60Hz; and instructions.

Specifications

Specifications
Bandwidth 20MHz
Sample rate(Real time) 100MS/s
Horizontal Scale(S/div) 5ns/div~100s/div, step by 1~2.5~5
Rise time (at input, typical) ≤17.5ns
Channels Single
Display 3.5”color display with TFT panel (320×240 pixels)
Input impedance 1MΩ±2%in parallel with 18pF±5pF
Probe attenuation factor 1X, 10X, 100X, 1000X
Max. input voltage 400V (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1)
DC gain accuracy ±3%
DC accuracy(Average) Average≥16:±(3% reading+0.05div) for ΔV
Probe attenuation factor 1X, 10X, 100X, 1000X
LF respond(AC, -3dB) ≥5Hz(at input, AC coupling, -3dB)
Record length Max.6000 points for each channel
Interpolation (sin x)/x
Input coupling DC, AC, GND
Acquisition modes Sample, Peak Detect and Average
Vertical resolution (A/D) 8 bit
Vertical sensitivity 5mV/div~5V/div(at input)
Trigger type Edge, Video
Trigger mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Automatic measuremant PK-PK, Average, RMS, Frequency, Cycle, Vmax, Vmin, Vtop, Vmin, Vamp, Rise Time. -Width, +Duty,-Duty, Overshoot, Preshoot
Waveform storage 4 waveforms
Communication interface USB
Cymometer Available
Power supply 100V-240V AC, 50/60Hz
Li-ion battery 7.4V, 6 hours operation
Multimeter Specification
Full scale reading 3 digits (Max.4000-count)
Input Impedance 10MΩ
Capacitance 51.2nF-100uF:±(3%±3 digit)
Voltage VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V,
VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
Current DCA:40mA, 400mA:±(1.5%±1 digit) 20A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 20A:±(3%±3digit)
Impedance 400Ω:±(1%±3digit), 40Ω
