Topdon Ultrascan OBDCAN Plus 2.0 Car Code Reader Full OBD2 Functions Automotive Code Scanner Diagnostic Tool Multi Languages
1. Full OBDII Functions:
The OBDII diagnostic scanner allows you to perform quick and complete tests on the engine system, to help you check the vehicle emissions through fullOBDII functions including Read/Erase Codes, Live Data, Freeze Frame Data, I/M Readiness Status, O2 Monitor Test, On-Board Monitor Test, Component Test and Vehicle Information Retrieval etc:
Reading codes: Show the detailed description of the current Diagnostic Trouble Code (DTC); Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Live Data: Show the information of continuous data stream from vehicle in live graphic (waveform) display.
Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
I/M Readiness Status: Check the operations of the Emission System on OBDII compliant vehicles. Indicate which of the vehicle's monitors have or have not yet run and completed their testing and diagnosis of their designated sections of the vehicle's emissions system.
O2 Monitor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related power train components and systems.
Component Test: Allows initiating a leak test for the vehicle's EVAP system.
Vehicle Information Retrieval: Retrieves VIN, CINs, CVNs and In-use Performance Tracking on 2000 and newer vehicles that support Mode 9.
2. Built-in DTC Lookup:
TOPDON OBDCAN Plus offers diagnostic trouble code definitions helping and fast guiding you to fix the car, making sure you can easily understand the problem and the solution.
3. Graphical Display:
The OBDII scanner displays the data streams in graph, which will clearly show the data and you can make sure whether the data are in normal range and deal with some malfunction parts.
4. Data Record and Replay:
It supports not only the data retrieval but the record and replay. You can have an easy data analysis for different types of data at all times and places, including trouble codes, live data and freeze frame data.
5. Considerate Design:
Featuring high quality hardware, the OBDII code reader allows print out diagnostic data recorded by the scan tool. Also, users may enjoy the lifetime free upgrade online with multilingual support.
English, French, Spanish, Japanese, Chinese, German, Italian, Russian, Portuguese
Free lifetime update: connect the tool with PC, download the file and follow the steps to update the scan tool.
12-month warranty for any possible quality problems.

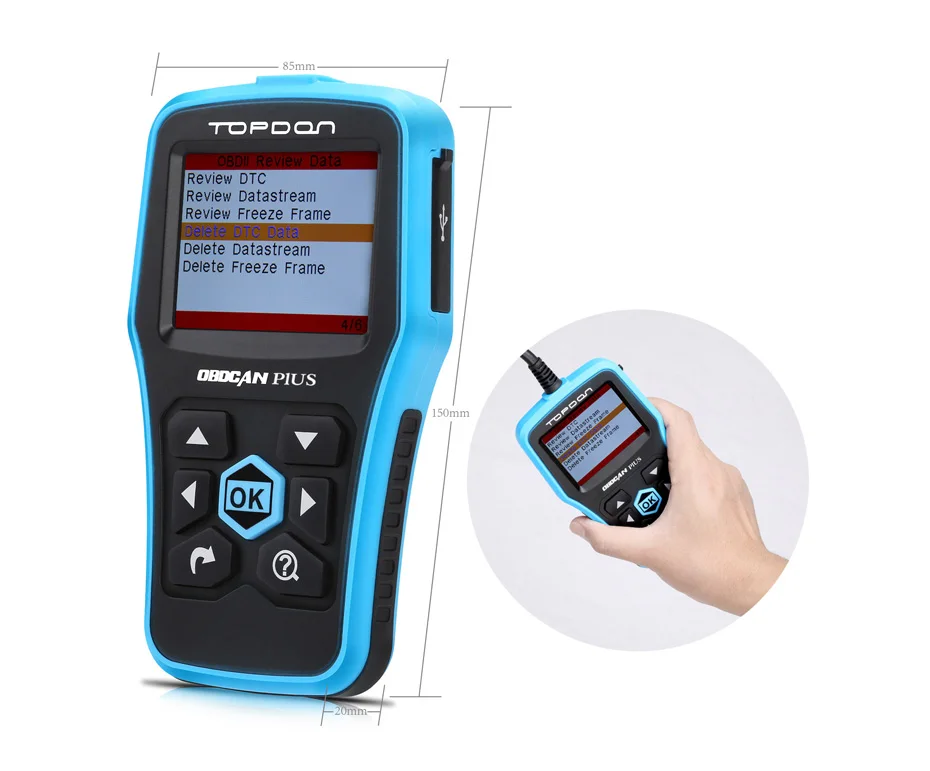

Screen:2.8" TFT, 320*240 LCD display
Input Voltage Range:9-18V
Operating Temperature:32°F-122°F/0°C -55°C
Storage Temperature:-4°F-158°F/-20°C -70°C
2*Quick Start Guide
