Big Sale MSO5202D Hantek digital oscilloscope USB 200MHz 2 channels Hantek Oscilloscope+16channels logic analyzer+external trigger

Big Sale MSO5202D Hantek digital oscilloscope USB 200MHz 2 channels Hantek Oscilloscope+16channels logic analyzer+external trigger

Big Sale MSO5202D Hantek digital oscilloscope USB 200MHz 2 channels Hantek Oscilloscope+16channels logic analyzer+external trigger

Product ID : 32839454009
Price : $459.00
Discount Price : $265.19

VISIT WEBSITE NOW

Item specifics
  • Band Width:
    Less than 60MHz
  • Brand Name:
    wanptek
  • DIY Supplies:
    Electrical
  • Max Waveform Capture Rate:
    30,000wfm/s
  • Display resolution:
    800*480 Pixels
  • Display Size:
    7 Inches & Above
  • Record Length:
    Hantek digital oscilloscope
  • Real Time Sampling Rate:
    1GSa/S
  • Model Number:
    MSO5202D
  • Digital Channels:
    2
  • IS Battery Demountable:
    No
Product Description
Feature:
16 channels logic analyzer + 2 channels oscilloscope + external trigger.
Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
1GSa/s real time sampling rate.
USB host, support flash memory card storage and USB interface system upgrade.
Ultrathin design, handy volume, easily portable.
VGA Optional

Oscilloscope Function:
Bandwidth 200MHz.
Each channel record length up to 1M.
Real time sampling rate up to 1GSa/s.
Powerful trigger function.
32 kinds of automatic measurement function.

Logic Analyzer Function:
16 channels divided into 2 groups which is able to setup threshold level individually.
Real time sampling rate up to 500MSa/s.
Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.


Oscilloscope Specification

Horizontal

Model

MSO5062D

MSO5102D

MSO5202D

Bandwidth

60MHz

100MHz

200MHz

Sampling Rate Range

Max. 1GS/s

Waveform Interpolation

( sin x) /x

Memory Depth (Sample Points)

Single-channel: maximum 1M; Dual-channel: maximum 512K (4K, 16K, 40K optional)

SEC/DIV Range

8ns/div-40s/div (stepping in a sequence: 2,4,8)

Sampling Rate and Delay Time Accuracy

50ppm in any ≥1ms time intervals

Delta Time Measurement Accuracy (full bandwidth)



Single, "sampling" mode

 (1 sampling interval + 100ppm × readings + 0.6 ns)

> 16 times above average

(1 sampling interval + 100ppm × readings + 0.4 ns)

Sampling interval = SEC/DIV÷200

Vertical

A/D Converter

8-bit resolution, each channel sampled simultaneously

VOLTS/DIV Range

2mV/div ~ 5V/div at input BNC

Position Range

400mV (2mV/div ~20mV/div)

2V (50mV/div ~200mV/div)

40V (500mV/div ~2V/div)

50V (5V/div)

Optional Analog Bandwidth Limit (typical)

20MHz

Low Frequency Response (-3db)

≤10Hz at output BNC

Rising Time at output BNC (typical)

60MHz

100MHz

200MHz

≤ 5.8ns

<3.5ns

<1.8ns

Vertical Gain Accuracy

3% for sample or average acquisition mode, 5V/div to 10mV/div;

4% for sample or average acquisition mode, 5mV/div to 2mV/div

DC Measurement Accuracy

Average Acquisition Mode

Measuring type: ≥16 zero vertical position waveform average .

Accuracy: (3%× reading+ 0.1div+ 1 mV), applicable to 10 mV/div or above units.

Measuring type: ≥16 non-zero vertical position waveform average.

Accuracy:  [3%× (readings+ vertical position)+1%×vertical position+0.2div].

For the setting from 2mV/div to 200mV/div, +2mV; for 200mV/div to 5V/div, +50mV.

Voltage Measurement Repeatability

Average Acquisition Mode

In the same settings and environmental conditions, acquisition ≥ the voltage increment between any two groups average of 16 above waveforms : (3% × readings + 0.05 div)

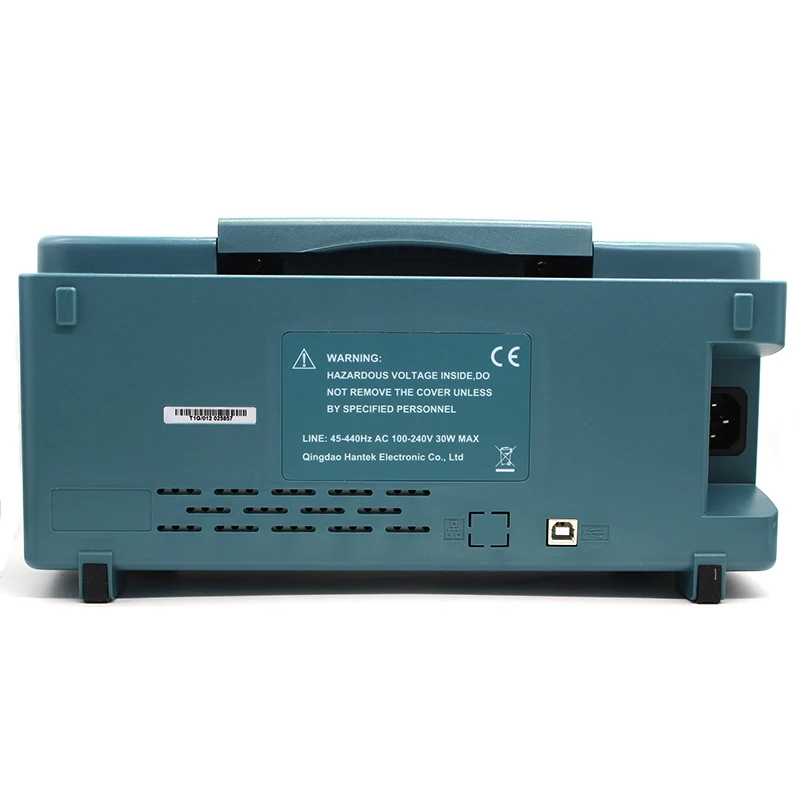

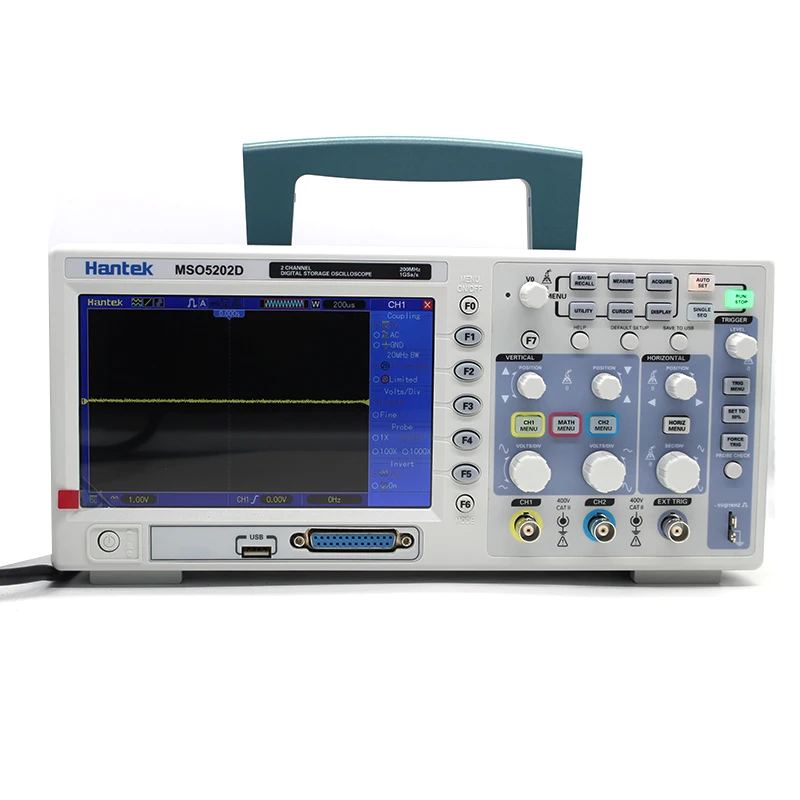

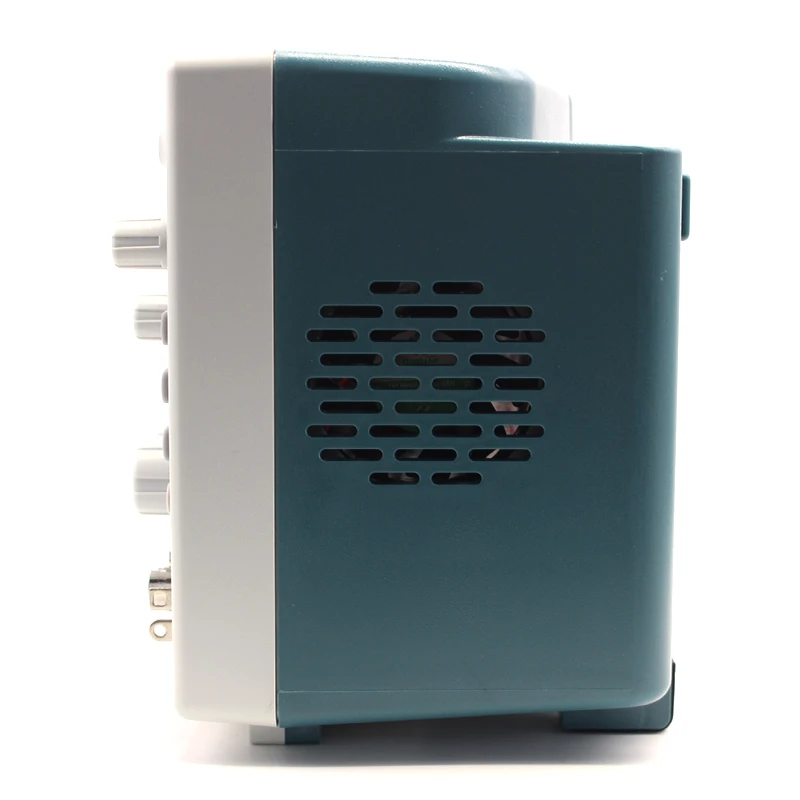

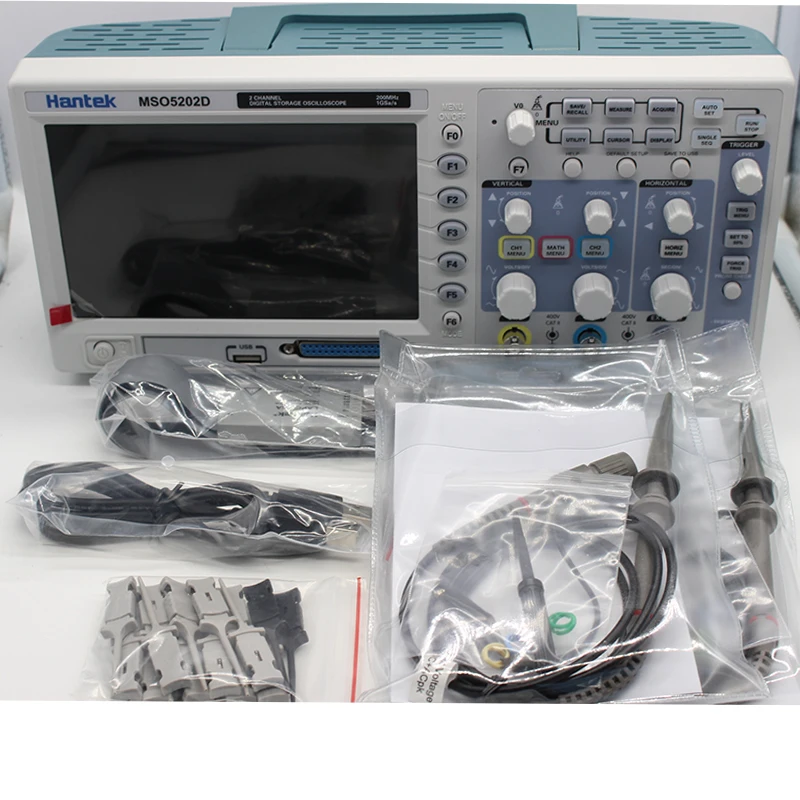

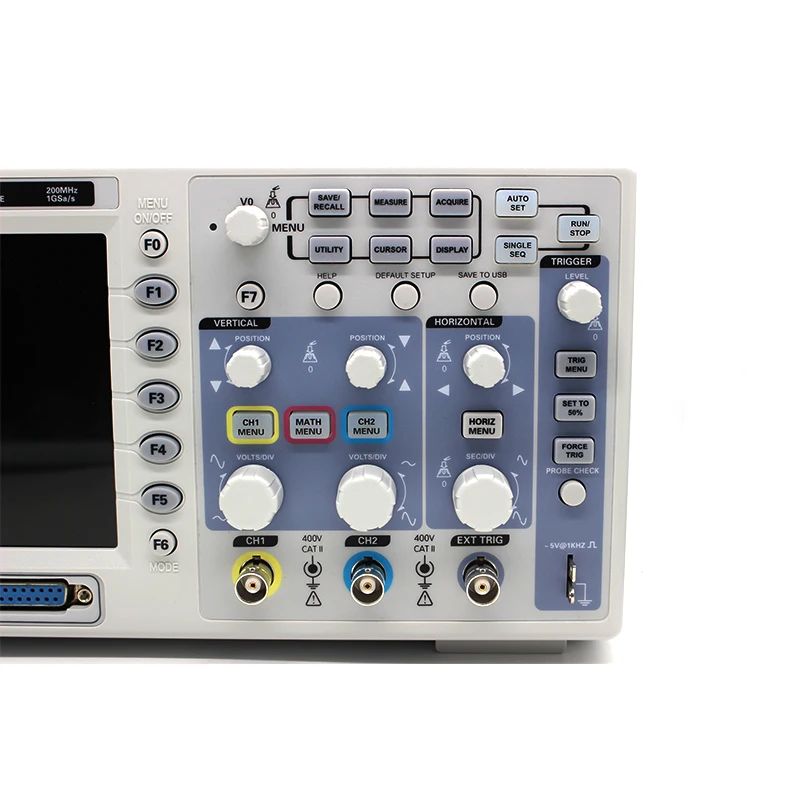

Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (7)Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (1)Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (2)Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (3)Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (4)Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (5)Hantek MSO5202D Digital Oscilloscope USB 200Mhz 2 Channels Hantek Osciloscopio +16Channels Logic Analyzer + External Trigger (6)

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    5.0kg (11.02lb.)
  • Package Size:
    40cm x 20cm x 25cm (15.75in x 7.87in x 9.84in)
