Big Sale RIGOL MSO1104Z digital oscilloscope 100Mhz 4 CH mixed signal oscilloscope

Big Sale RIGOL MSO1104Z digital  oscilloscope 100Mhz 4 CH mixed signal oscilloscope

Big Sale RIGOL MSO1104Z digital oscilloscope 100Mhz 4 CH mixed signal oscilloscope

Product ID : 1961731586
Price : $939.00
Discount Price : $311.49

VISIT WEBSITE NOW

Item specifics
  • Digital Channels:
    4
  • Max Waveform Capture Rate:
    50,000wfm/s
  • Brand Name:
    XEAST
  • Display resolution:
    800*600 Pixels
  • DIY Supplies:
    Electrical
  • Record Length:
    See description
  • Display Size:
    7 Inches & Above
  • IS Battery Demountable:
    Yes
  • Real Time Sampling Rate:
    1GSa/S
  • Model Number:
    MSO1104Z
  • Band Width:
    100-349MHz
Product Description

2015

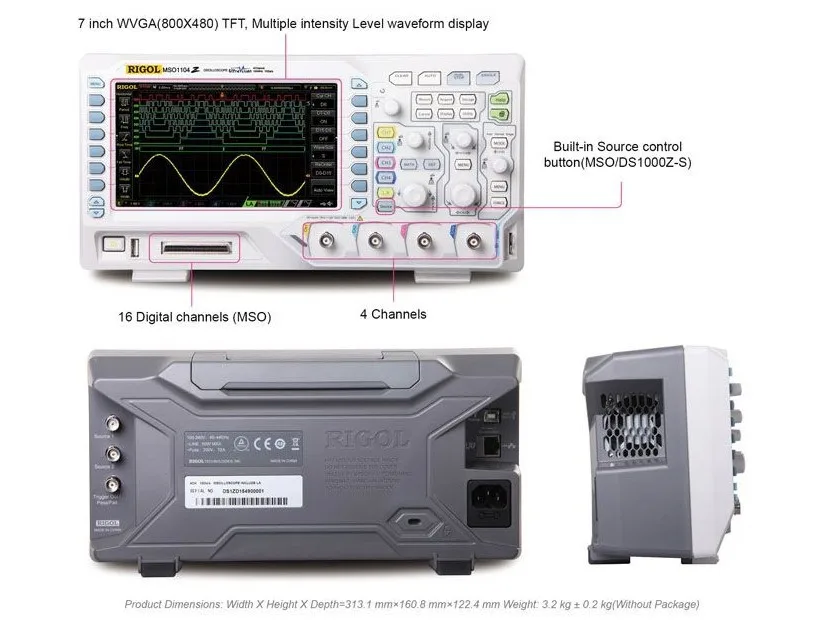

RIGOL MSO1104Z digital  oscilloscope 100Mhz 4 CH mixed signal oscilloscope



Feature and Benifits:

BW 100MHz
Max. Sample rate 1GSa/s (single-channel)
500MSa/s(dual-channel)
250MSa/s(four-channel)
1GSa/s(MSO)

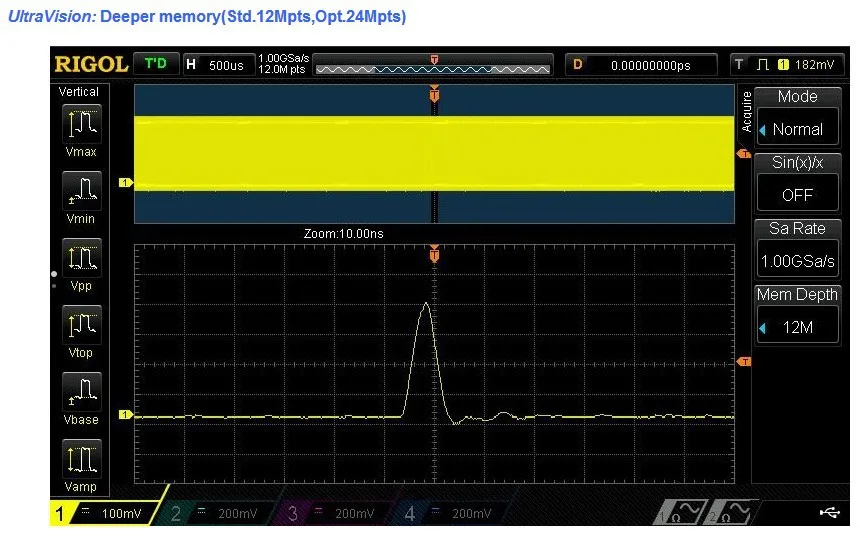

Max. Memory Depth 12Mpts(standard) ,24Mpts(option)

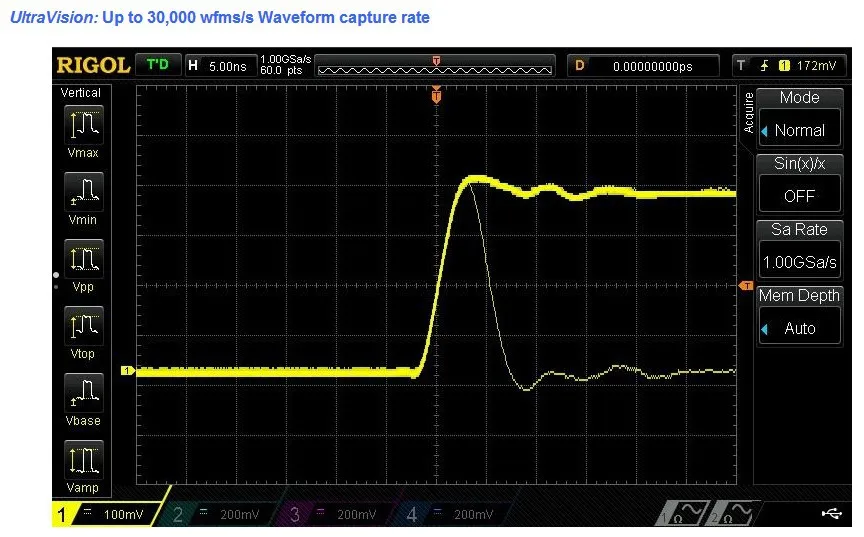

Max. Waveform Capture rate 30,000 wfms/s

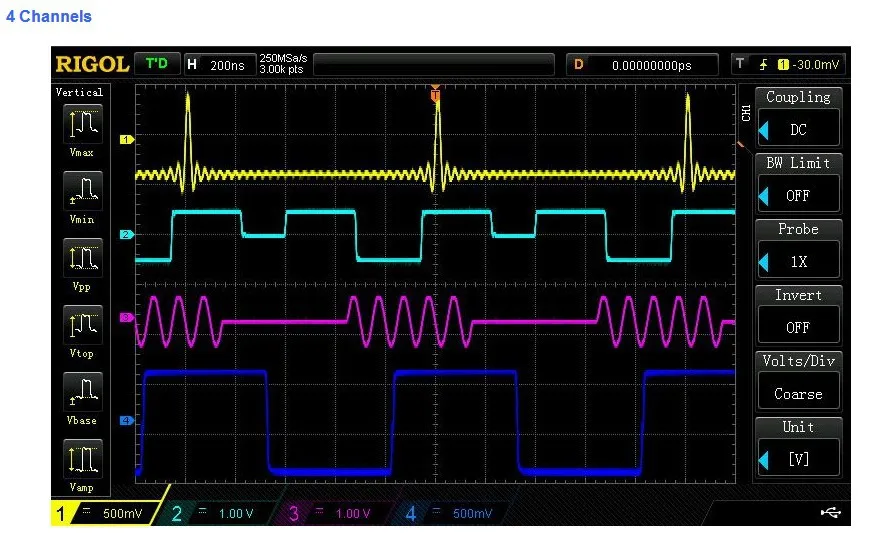

Channels 4
Trigger functions Edge,Pulse width,slope,video,pattern,Runt,Windows,Nth Edge,Delay,Time Out,Duration,setup/hold,RS232/UART,I2C,SPI

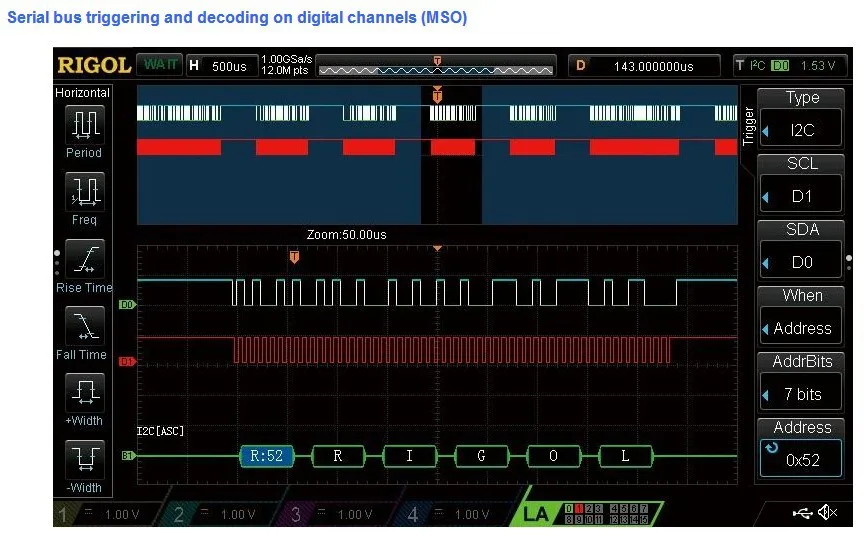

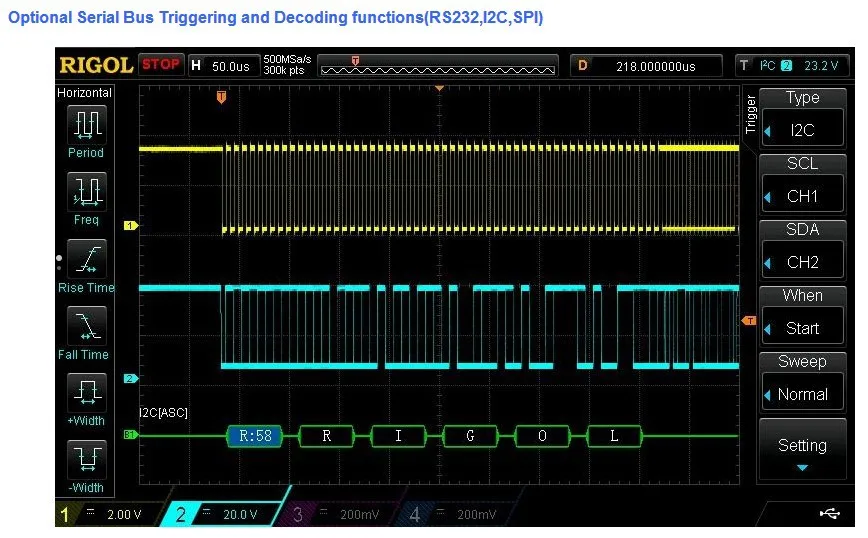

Series Bus Decording RS232/UART,I2C,SPI
Math functions A+B, A-B, A×B, A/B, FFT, &&, ||, ^, !, intg, diff, sqrt, lg, ln, exp, abs
Auto Measurements Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average, Mean Square Root, Overshoot, Pre-shoot, Area, Period Area, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay A→B rising edge, Delay A→B falling edge,Phase A→B rising edge,Phase A→B falling edge
Input R (1MΩ±2%)||(13 pF±3 pF)
Display 7.0 inches TFT LCD display,800 horizontal×RGB×480 vertical pixel
BW Limit 20MHz
Connectivities USB HOST, USB DEVICE, LAN, Aux (TrigOut /PassFail)
Size(W×H×D) 313.1 mm× 160.8 mm×122.4 mm
Weight 3.8 kg ± 0.5 kg
Built in Source NA
Advanced functions

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    5.0kg (11.02lb.)
  • Package Size:
    45cm x 28cm x 28cm (17.72in x 11.02in x 11.02in)
