Product ID : 32831907660
Price : $98.00
Discount Price : $80.36

VISIT WEBSITE NOW

Item specifics
  • Brand Name:
    niusiwen
  • Band Width:
    Less than 60MHz
  • Record Length:
    Maximum 1M/CH
  • Digital Channels:
    1
  • Max Waveform Capture Rate:
    3,000,000wfm/s
  • Model Number:
    PSO2020
  • DIY Supplies:
    Electrical
  • Display Size:
    None
  • Display resolution:
    640*480 Pixels
  • IS Battery Demountable:
    No
  • Real Time Sampling Rate:
    96MSa/s
Product Description

dianxiaobao_1

dianxiaobao_2

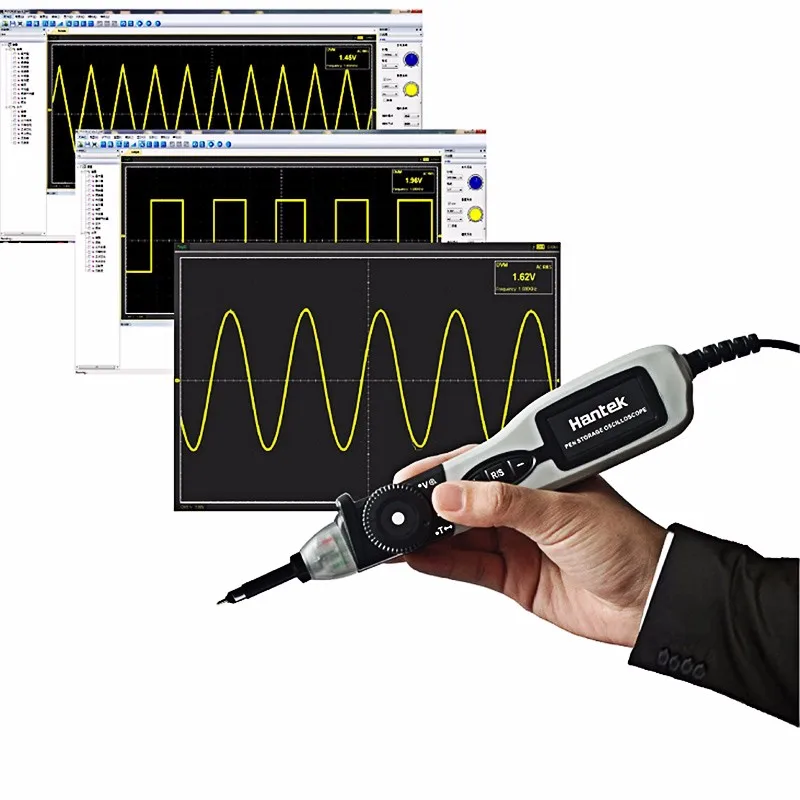

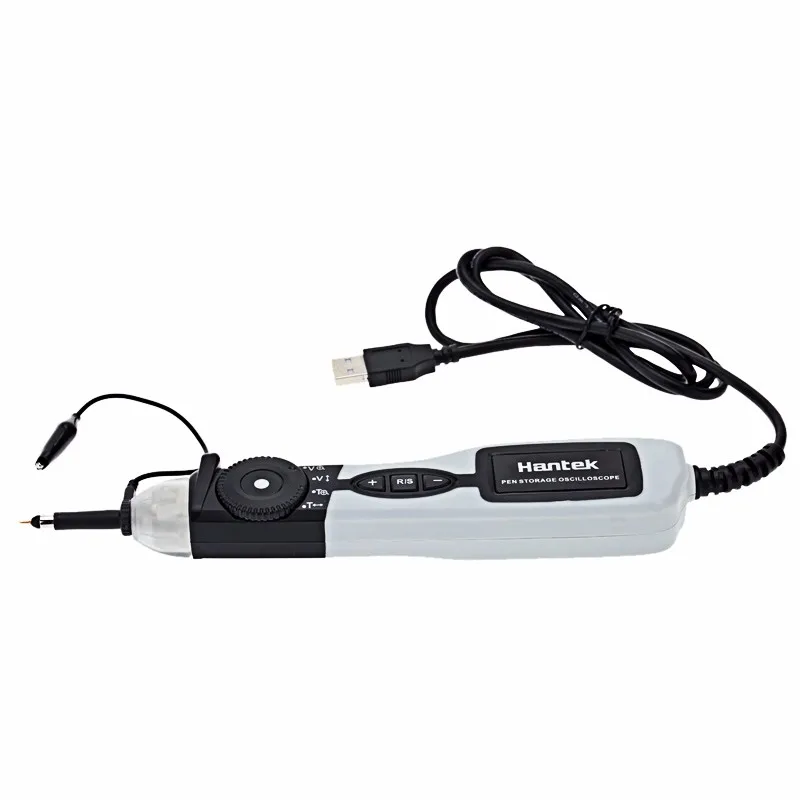

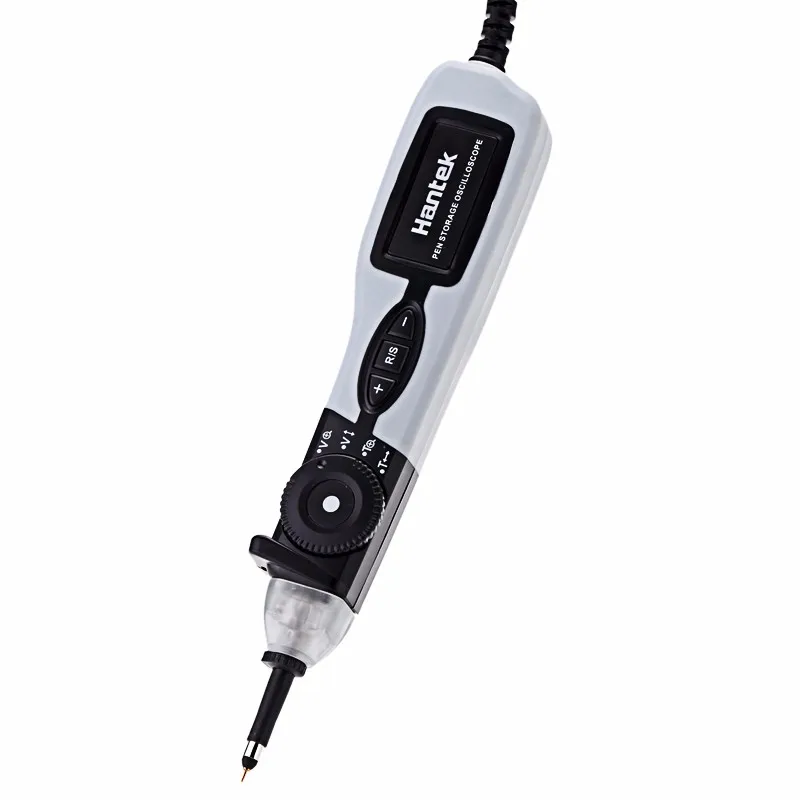

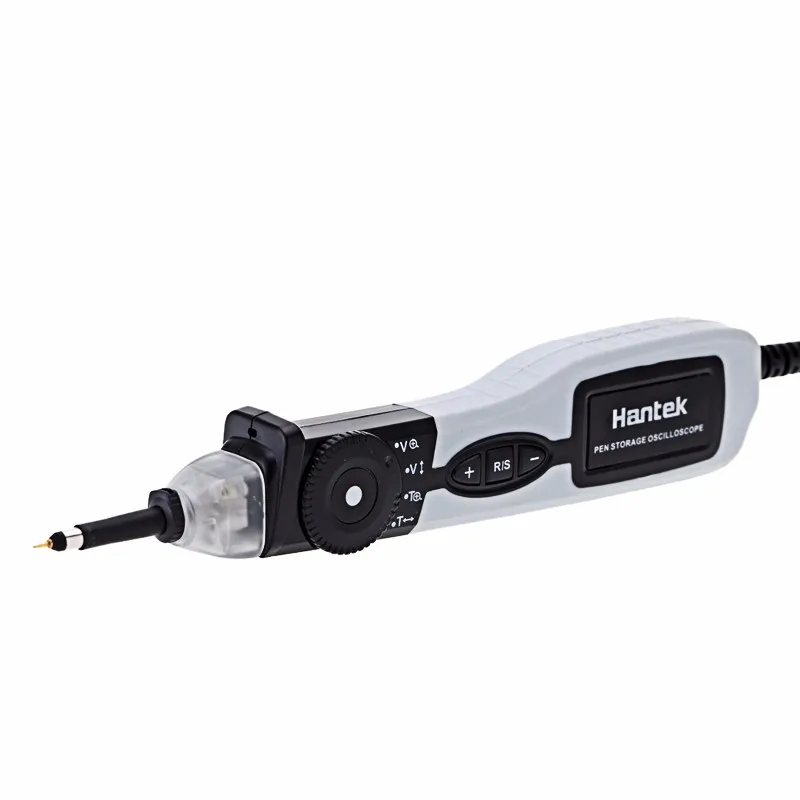

Digital Oscilloscope PSO2020 Portable Pen type Storage Handheld Oscilocopio USB PC 1 Channel 20Mhz Diagnostic-tool



Features:
*Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.

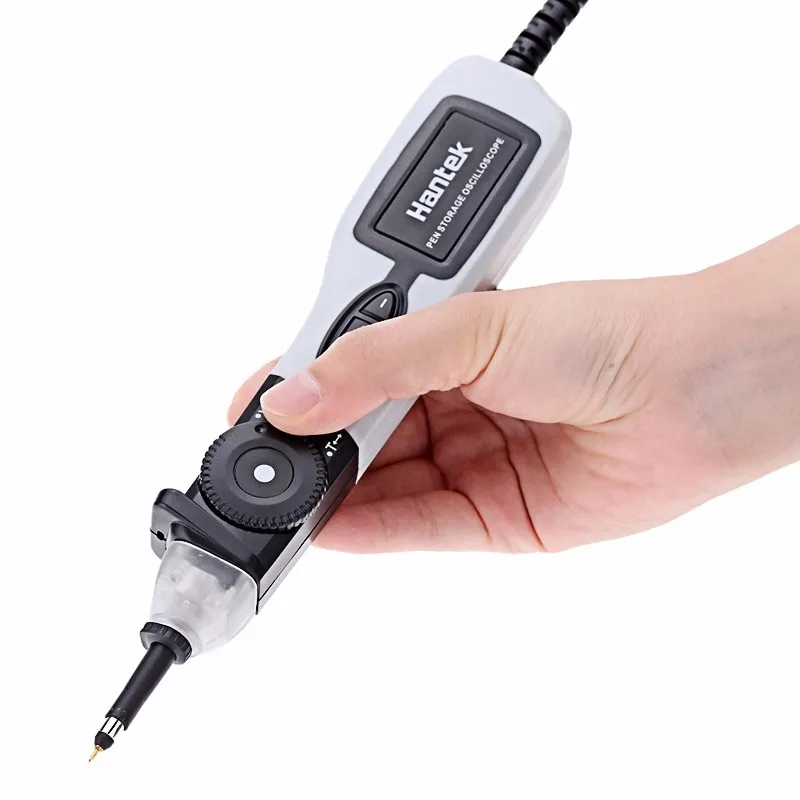

*Change the voltage/time division gear with single hand, no need to operate on the computer.
*Built-in LED light, providing better light for user's convenient operation in dark environment.
*Light weight and portable in design, suitable for use.
*DVM(digital voltmeter)function, real-time display the voltage measurement results.
*20MHz bandwidth, meet the requirements of measurement

*Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
*Operating system:Windows NT,Windows2000/XP, WIN7/8.
*Possible to connect to laptop directly, high cost performance.

Specifications:
Vertical
Channel: 1
Bandwidth: 20MHz
Input Impedence: 1MΩ
Input Sensitivity: 20mV/div to 50V/div
Input Coupling: DC/AC/GND
Vertical Accuracy: ±3%
Resolution: 8 bits
Memory Depth:Maximum 1M/CH
Max. Measurement Voltage: ±50V (Without any attenuation)
Input Protection: 100V (DC+AC Peak)

Horizontal
Max. Sample Rate: 96MSa/s
Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)

Trigger
Trigger Source: CH1
Trigger Type: Edge Trigger

Cursor and Measurement
Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Cross, Trace, Horizontal, Vertical
Math: +,- , x,÷, FFT
Voltage Range: 20mV to 20V/div @ x 1 probe

Others
FFT: Rectangular, Hanning, Hamming, Blackman
Auto Set: Yes
Interface: USB 2.0
Power Supply: USB Power Supply
Dimensions: 230 * 40 * 20mm / 9.05 * 1.57 * 0.8in
Weight: 135g / 4.76oz
Package Size: 30 * 12 * 3.5cm / 11.8 * 4.72 * 1.4in (L * W * H)
Package Weight: 263g / 9.29oz

Package List:
1 * PSO 2020 Pen Oscilloscope
1 * CD


aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()
aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()


dianxiaobao_3

dianxiaobao_4

Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    0.48kg (1.06lb.)
  • Package Size:
    15cm x 15cm x 10cm (5.91in x 5.91in x 3.94in)
