Special Price Hantek 1008C 8CH Programmable Generator USB PC based Oscilloscope spectrum Automobile DAQ Diagnostic tool Car Digital multimeter

Special Price Hantek 1008C 8CH Programmable Generator USB PC based Oscilloscope spectrum Automobile DAQ Diagnostic tool Car Digital multimeter

Special Price Hantek 1008C 8CH Programmable Generator USB PC based Oscilloscope spectrum Automobile DAQ Diagnostic tool Car Digital multimeter

Product ID : 32911771855
Price : $94.99
Discount Price : $219.60

VISIT WEBSITE NOW

Item specifics
  • DIY Supplies:
    Electrical
  • Record Length:
    as description
  • Display Size:
    None
  • Max Waveform Capture Rate:
    30,000wfm/s
  • Model Number:
    Hantek1008c
  • Band Width:
    Less than 60MHz
  • IS Battery Demountable:
    No
  • Brand Name:
    Hantek
  • Display resolution:
    N
  • Real Time Sampling Rate:
    as description
  • Digital Channels:
    8
  • Car diagnostic instrument:
    Car diagnostic instrument
  • Programmable Generator:
    Programmable Generator
  • Programmable Automotive Oscilloscope:
    Programmable Automotive Oscilloscope
  • PC USB Oscilloscope:
    PC USB Oscilloscope
Product Description

Hantek 1008C 8 Channels Programmable Automotive Oscilloscope  Digital Multime PC Storage Car diagnostic instrument

Features

Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost -effective;
8 channels oscilloscope for vehicle testing;
Auto Ignition Probe;
2.4MSa/s real time sampling rate, 12bit vertical resolution;
spectrum analysis function;
10mV/div to 5V/div input sensitivity;
DAQ card function;
8 channels programmable generator which can analog signals of crankshaft, camshaft, etc.

specification

(1) Vehicle Testing
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
(2) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function
(3) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.
(4) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
 NOTE: Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7,Window 8,Window 10


Model

Hantek1008C

Oscilloscope Mode

Vertical

Analog Channel

8

Input Impedance

Resistance: 1MΩ

Input Sensitivity

10mV/div to 5V/div



Input Coupling

DC

Resolution

12 bits

Horizontal

Memory Depth

4K

Max. Input

400V (DC+AC Peak)

Real-Time Sampling Rate

2.4MSa/s

Time Base Range

1ns/div to 20000s/div(1-2-5 sequences)

Time Base Precision

±50ppm

Trigger

Source

CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

Mode

Edge

X-Y Mode

X-Axis Input

CH1

Y-Axis Input

CH2

Cursors and Measurement

Voltage Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement

Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement

Horizontal ,Vertical, Track, Auto Measure Modes

Waveform Signal Process



+,- , x,÷, FFT, Invert

Voltage Range



10mV to 5V/div @ x 1 probe

100mV to 50V/div @ x 10 probe

10V to 5000V/div @ x 1000 probe

100V to 50000V/div @ x 10000 probe

200mV to 100V/div @ 20:1

Current Range



100mA to 50.0A/div @ CC65(20A)

1000mA to 500.0A/div @ CC65(65A)

1A to 100.0A/div @ CC650(60A)

10A to 1000.0A/div @ CC650(650A)

1A to 200.0A/div @CC1100(100A)

10A to 2000.0A/div @CC1100(1100A)

Cursor



Time/frequency difference, voltage difference

FFT



Rectangular, Hanning, Hamming, Blackman Window

Math



Addition, subtraction, multiplication, division

Programmable Generator

Channel



8

Output Level



LVTTL

Frequency Range



0-250kHz

Interface



USB  2.0

Power



No need extra power supply

Measurement

Size

185 x 150 x 27 (mm)

Weight

0.35KG

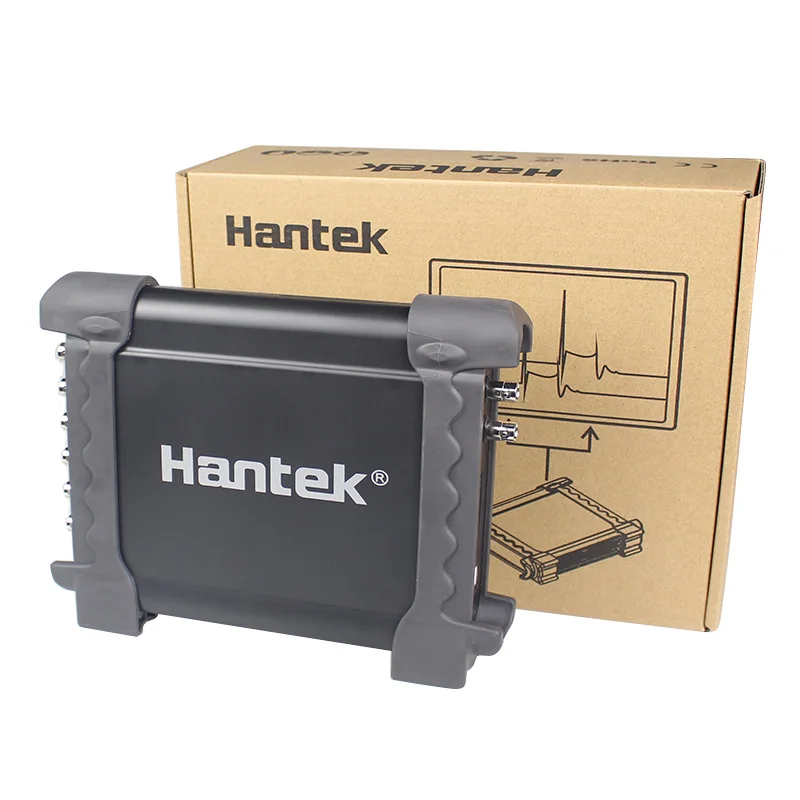

Product Image
hantek 1008c.06hantek 1008c.07hantek 1008c.09hantek 1008c.10hantek 1008c.05

Warranty


1.- One year guarantee.

2.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).

3.- One we get the returned items, we will send the replaced ones back as soon as possible.

4.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.


Shipment

1.- We can ship the products all the world.

2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.

3.- The item will be sent out with 3days after receiving the payment.

4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.

5.- You can track the situation of your product on website after they are shipped out.



Import Taxes or Duties

1.- Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are afforded by buyer.

2.- Please check with you country's Customs office to determine what these additional costs will be before purchase.

3.- Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc…



Feedback

1.- As your feedback is very important to our development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. Thanks a lot for your time.

2.- Our program will leave back the same feedback to you after your positive feedback.

3.- Please contact us before you leave a neutral or negative feedback, we will try our best to solve the problems.


Thank you very much for your support  and wish you have a nice day!





Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    1.85kg (4.08lb.)
  • Package Size:
    25cm x 20cm x 5cm (9.84in x 7.87in x 1.97in)
