Product ID : 32955107722
Price : $133.32 – 217.94
Discount Price : $103.99 – 169.99

VISIT WEBSITE NOW

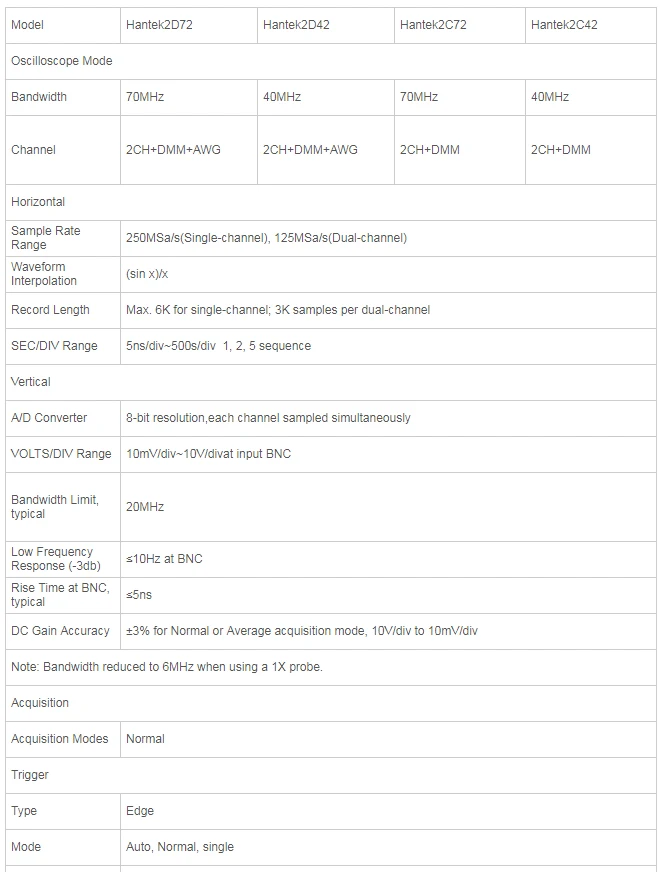

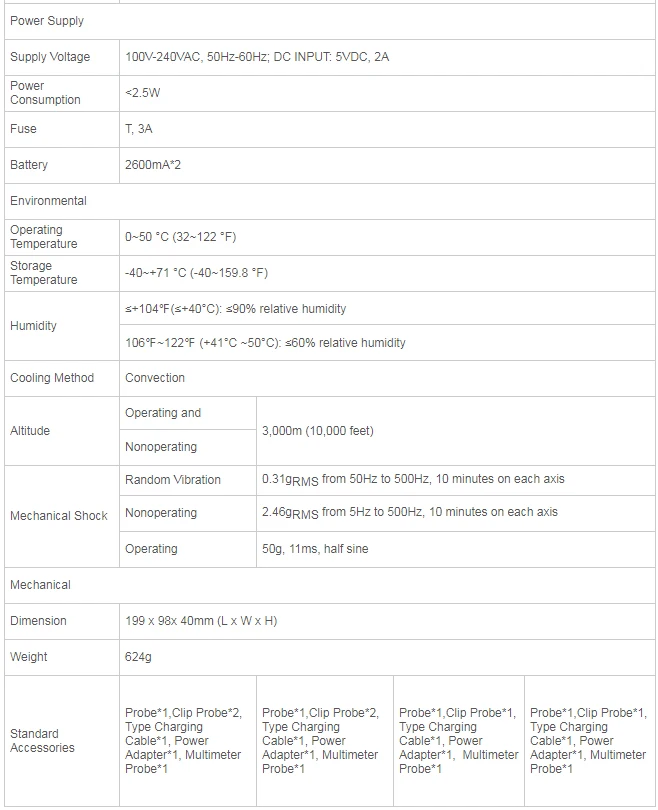

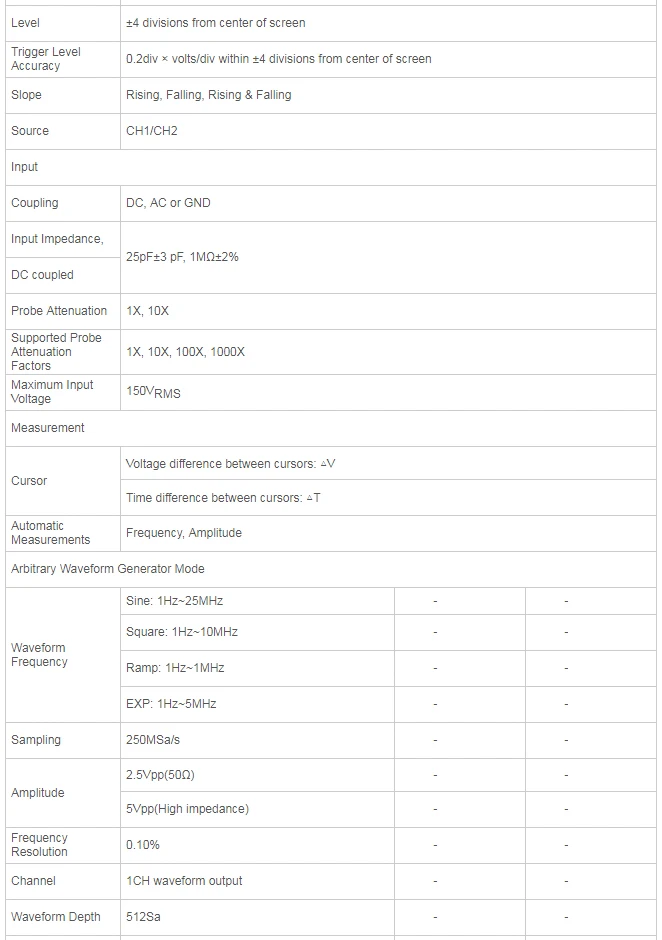

Item specifics
  • Brand Name:
    Hantek
  • DIY Supplies:
    Electrical
  • Digital Channels:
    2
  • Display Size:
    3.0 – 4.9 Inches
  • Display resolution:
    800*480 Pixels
  • Real Time Sampling Rate:
    1GSa/S
  • Model Number:
    Hantek2c42/Hantek2d42/Hantek2c72/Hantek2d72
  • Record Length:
    as description
  • IS Battery Demountable:
    Yes
  • Band Width:
    40Mhz-70Mhz
  • Sample Rate Range:
    250MSa/s(Single-channel), 125MSa/s(Dual-channel)
  • Waveform Interpolation:
    (sin x)/x
  • Maximum Resolution:
    4000 Counts
  • Maximum Input Voltage:
    AC:600V, DC: 800V
  • Bandwidth Limit, typical:
    20MHz
Product Description

Hantek Oscilloscope automotive+multimeter +Waveform Generator 3 in 1 oscilloscope handheld USB 2 Channels 40mhz 70mhz tools

Hantek 2000 Series An all-new handheld oscilloscope-Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 3 in 1 multifunction tester: oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.

· Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.

· Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;

· Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;

· Large-capacity lithium battery power supply: Tesla style 18650 replaceable lithium battery power system, free from replace battery;

· 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;

· AUTO one-key test: Magic tool and essential function for test newbie;

· Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;

· One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;

· Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;

· Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;

· One-click switching its Chinese and English language menu;

· Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;

· Minimalist keyboard design simplify operation, convenient to use;

· Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;

· Self-calibration function: free from level drift after long time unused;

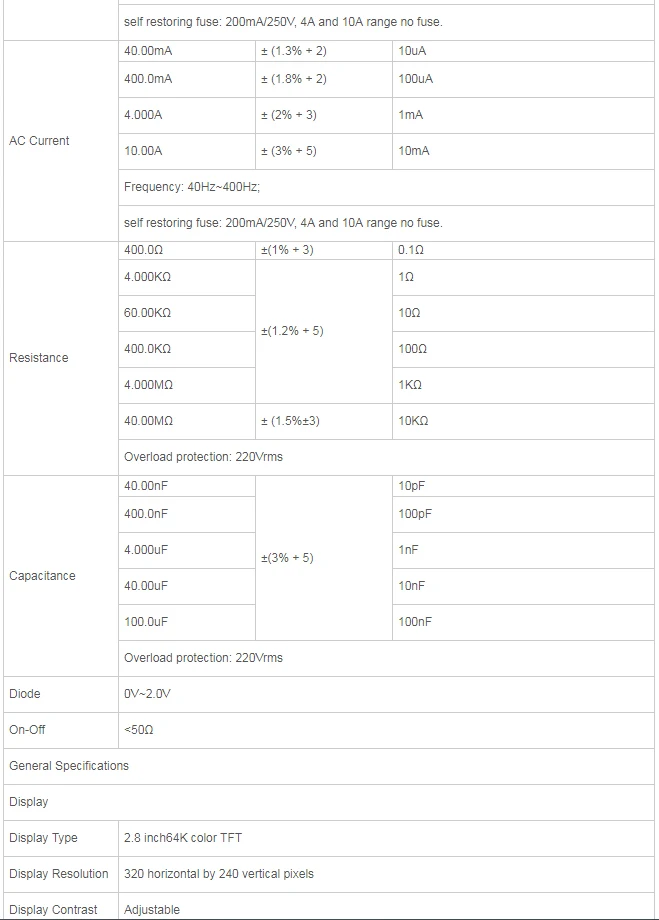

· Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;

· Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;

· Function of video help:scan code on back of machine to get help of video course;


 Great function with small size!



Minimalist keyboard design simplify operation, easy to use.


 Oscilloscope + Waveform Generator + Multimeter:



Multi-purpose station own three universal test instrument functions. Outgoing right-hand product for engineers.

 Waveform Generator Function

A multipurpose instrument that helps complete your tasks more quickly, improves work

 efficiency, and meets all your current and future test needs.

 Multifunction Digital Multimeter Function



High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry.


 Intelligent Charging Control

Be able to recharged by 5V/2A large current or ordinary computer USB port, measurement can be done even while charging, convenience and user-friendly.

 Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface



18650 replaceable lithium battery power system, free from replace battery;

Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging,

while using, very convenient and handy;

Type C charging interface, after every recharge of 2 hours, the device can be used continuously for

a full day or standby more than two months;

Type C power + data transfer interface, can share the charger and data cable with your mobile phone;


Suspended Support, Multiangular Adjusting, Let you Enjoy Convenience

Function Review

Connectors

 Powerful PC software

 Oscilloscope powerful functions: 20 kinds of automatic measurement, cursor measurement,

waveform printing and saving functions, REF and Math functions, Pass / Fail functions.



The waveform generator is able to draw and output arbitrary waveforms on its PC software



Its multimeter with recorder function, which support the measurement resultsto nerate the curves

and analyze them.





 Packing list


Packaging Details
  • Unit Type:
    piece
  • Package Weight:
    1.1kg (2.43lb.)
  • Package Size:
    10cm x 10cm x 20cm (3.94in x 3.94in x 7.87in)
